How to Migrate Exchange 2010 to 2016

Hello guys, today we are going to discuss about how to migrate Exchange 2010 to 2016. It’s not a very lengthy process to achieve but it is the process which should be performed carefully.
I am considering that Active Directory and Exchange Server 2010 is already installed and configured very well and it is running right now in the user machine. I am also considering that Exchange 2016 is already installed in the organization, which is currently running Exchange 2010.

After making sure that all the conditions, which I have mentioned in above paragraph, are true, we will proceed to the Migration Process from Exchange 2010 to 2016.
We have to move Arbitration Mailboxes from Exchange Server 2010 to 2016. Arbitration mailboxes are those mailboxes which are used to store audit logs, eDiscovery searches metadata & unified messaging data, custom greetings and dial plans. If we don’t move arbitration mailboxes then CMDLET of Exchange 2016 won’t be logged in and its eDiscovery searches won’t start.
So, let’s proceed to move arbitration Mailboxes from Exchange 2010 to 2016. We will discuss it in steps with pictorial representation.
  1. Firstly run Exchange Admin Center (EAC) and login Using Administrator User Account Credentials.
  2. After Logging in into EAC click on Recipients tab present in left division. Then click on Migration option present at center of screen at right side of shared. You can see Fig 1 for reference.

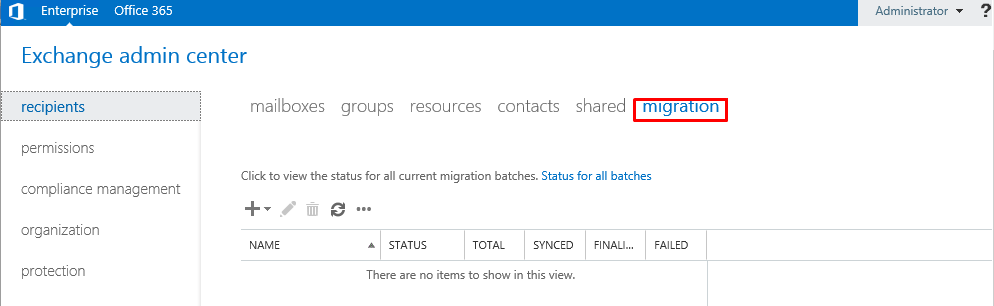

    Figure 1: Exchange Admin Center
  3. Now click on Add (+) sign at the left side under Click to view the status. See Fig 2 for reference.
    Figure 2: Go for Migration
  4. Choose Move to a different database option from the drop-down menu. You can see Fig 3 for reference.
    Figure 3: Move to a different database
  5. Now a New Migration Batch window will open. Select radio button “Select the users that you want to move”. Now click on Add (+) sign button. You can see Fig 4 for reference.
    Figure 4: Select the Users that you want to Move
  6. Now Select Mailbox window will open. Here you will see All available Mailboxes listed. Select Mailboxes which you want to migrate and click on Add -> button and then click on OK button. See Fig 5 & 6 for reference.
    Figure 5: Select Mailbox
    Figure 6: Add Selected Mailbox
  7. Now you will come to New Migration Batch window again, where you can see listed mailboxes for migration. Just click on Next button to proceed. See Fig 7 for reference.
    Figure 7: New Migration Batch
  8. Now you will come to next window. Enter the name of the mailbox in New migration batch name textbox. See Fig 8 for reference.
    Figure 8: New Migration Batch Name
  9. Then select radio button Move the primary mailbox and archive mailbox if one exists”. See Fig 9 for reference.
    Figure 9: Move Primary and Archive Mailbox
  10. Then click on Browse option for target database selection. Click on Next to proceed. See Fig 10 for reference of this step.
    Figure 10: Browse for Target Database
  11. After selecting a database from list, click on Add -> button then click on OK button. You can see fig 11 for reference.
    Figure 11: Select Mailbox Database

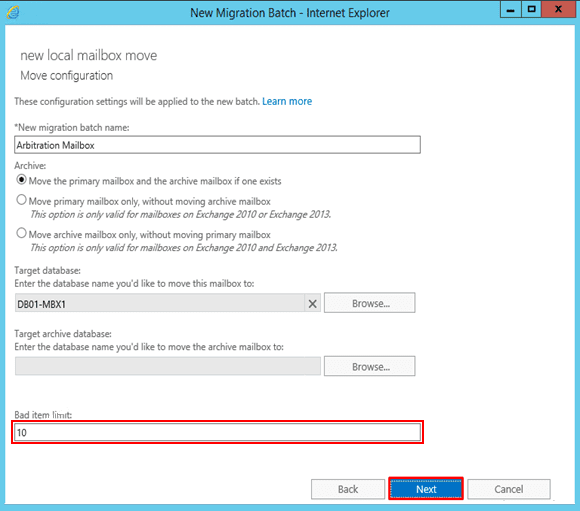

  12. Now you will again come to previous window. Enter 10 in the Bad item limit box and click on Next button. See fig 12 for reference.
    Figure 12: Bad Item Limit
  13. Now add recipient for reporting about migration completion or any issues related to migration process. You can add recipients by clicking on Browse button. After adding recipients just click on New button to proceed. See fig 13 for reference.
    Figure 13: Add Recipient for Reporting
  14. Now the migration process will start and you can see migration process status as displayed in fig 14.
    Figure 14: Migration Process Status
After completion of Migration process from Exchange Server 2010 to 2016 you will be able to perform administrative tasks like: AdminAuditLog access, Export Admin Audit Log and Search multiple mailboxes.

Rapid Solution: Exchange Recovery Software not only recover EDB file but also perform Exchange 2010 to 2016 migration in no time at all. Download Trial Version to know the functionality of the software.


We discussed about how to migrate Exchange 2010 to 2016. As we saw it’s not a very difficult task to perform but it is risky to perform. Risks include data loss, data corruption etc. If your mailbox is already corrupted then I will suggest you to first repair corrupt Exchange 2010 mailbox then proceed for migration of Exchange Server mailboxes. If there is anything else you want to ask or have any confusion about migration then you can write in comment section.
